$ 5.00

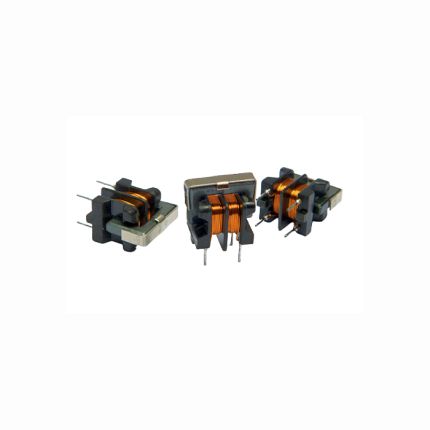

EMI line filter APMCU-5220
Working voltage 250V ( АС ), frequency 45/400Гц
Temperature rise for rated current < 30°С
Working temperature range -40…+80°С
Low profile horizontal construction
Isolation – 3500Vrms
Possibility customs marking
Delivery time 1,5-2 weeks
A separate $25.00 flat rate shipping fee will apply
| Min | Max | Unit Price |
|---|---|---|
| 30 | 49 | $ 4.70 |
| 50 | 99 | $ 4.15 |
| 100 | 249 | $ 3.50 |
| 250 | 499 | $ 3.00 |
| 500 | 1000 | $ 2.50 |
| 1000 | 10000 | $ 2.00 |
> ContactThank you for your message.
We provide online support every business day from 10:00 to 17:00 (London time, UK).
Electrical specifications (measurement made at 25°С) :
Irms, mA: 300
Power, V*А (max.): 60
Inductance , mH (min.): 22.0
Rdc, Ohm (max.): 3.30

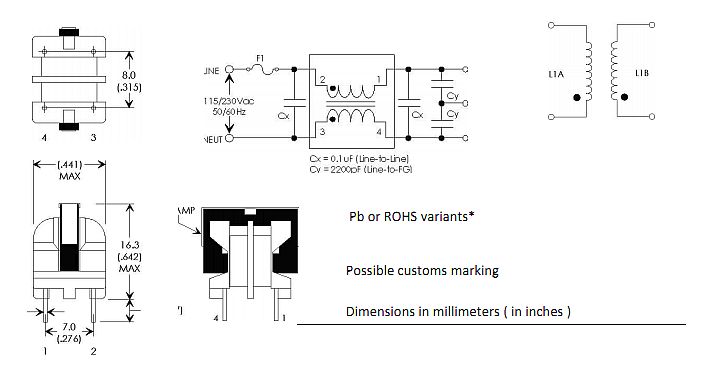

APMCU-5470, APMCU-5330, APMCU-5220, APMCU-5100, APMCU-5056, APMCU-5033, APMCU-5015 dimensions EMI line filter
| Weight | 0.1 kg |
|---|
